DJ600CX

Highlights of the DJ600CX Three-Wheeled High-Pressure Cleaning Vehicle:

The DJ600CX is a simple, practical, and versatile three-wheeled high-pressure cleaning vehicle designed for urban sanitation and street cleaning. Compact and agile, it offers reliable quality and is capable of performing sanitation tasks on roadways, pedestrian walkways, back alleys, and around trash receptacles.

1.  **Chassis:** Built on a heavy-duty cargo chassis with upgraded specifications. It features reinforced rear-axle half-shafts and heavy-duty tires (3.5-12 front, 4.0-12 rear), ensuring high load-bearing capacity and reliable quality.

2.  **Braking System:** Combines a handbrake with drum brakes, offering superior sensitivity, stability, and ease of operation for enhanced driving safety.

3.  **Control System:** Utilizes an intelligent controller with safety features such as electromagnetic interference protection, runaway prevention, startup delay, and automatic speed reduction during reversing.

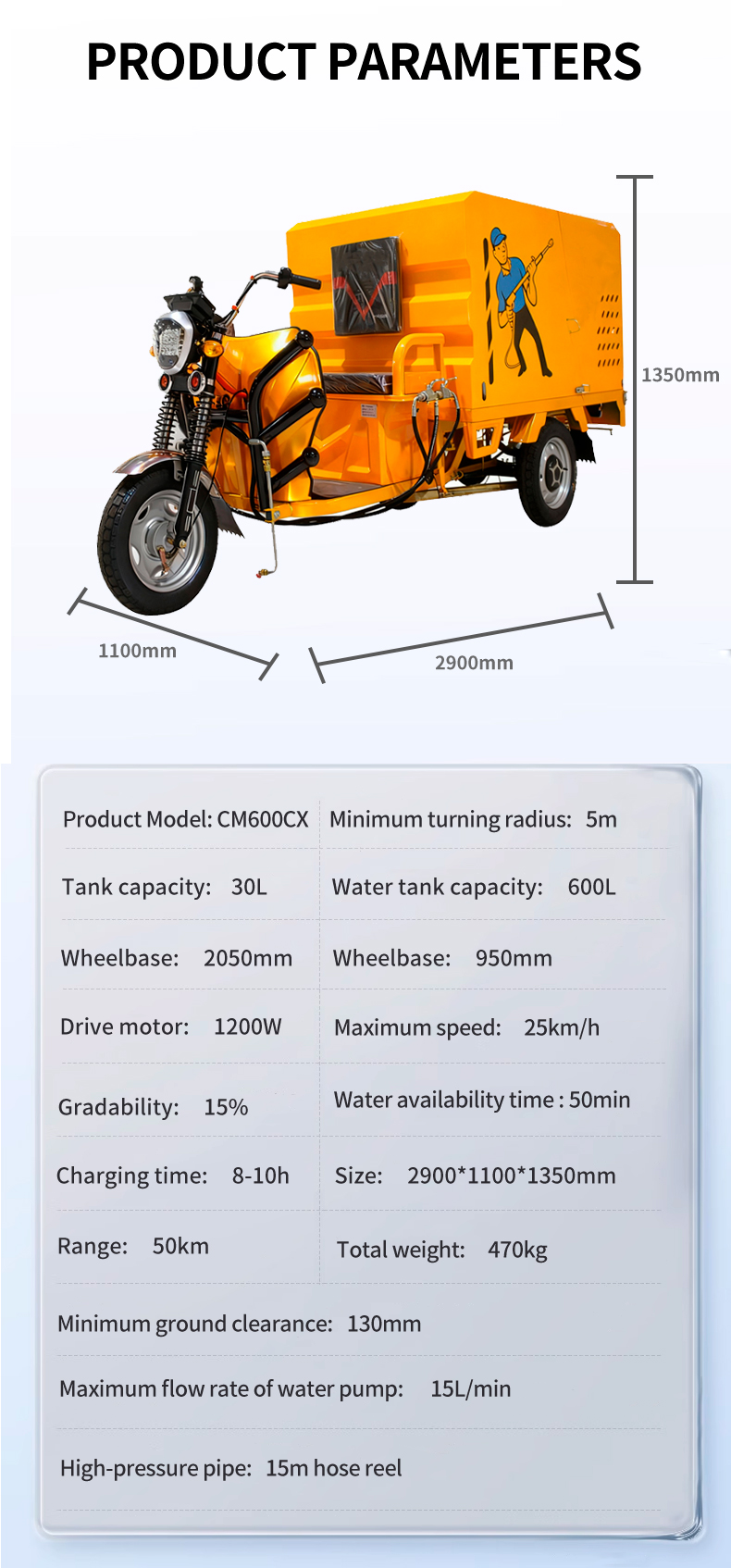

4.  **Dimensions & Maneuverability:** Measures 2900 x 1100 x 1350 mm (L x W x H). Its compact size, short wheelbase, and agile handling allow it to navigate public spaces like plazas, roads, streets, and scenic areas, delivering a scientific, cost-effective, and eco-friendly cleaning solution.

5.  **Bodywork:** Features a water level inspection port and a fire hydrant water inlet; the rear housing utilizes a flip-up design for easy maintenance.

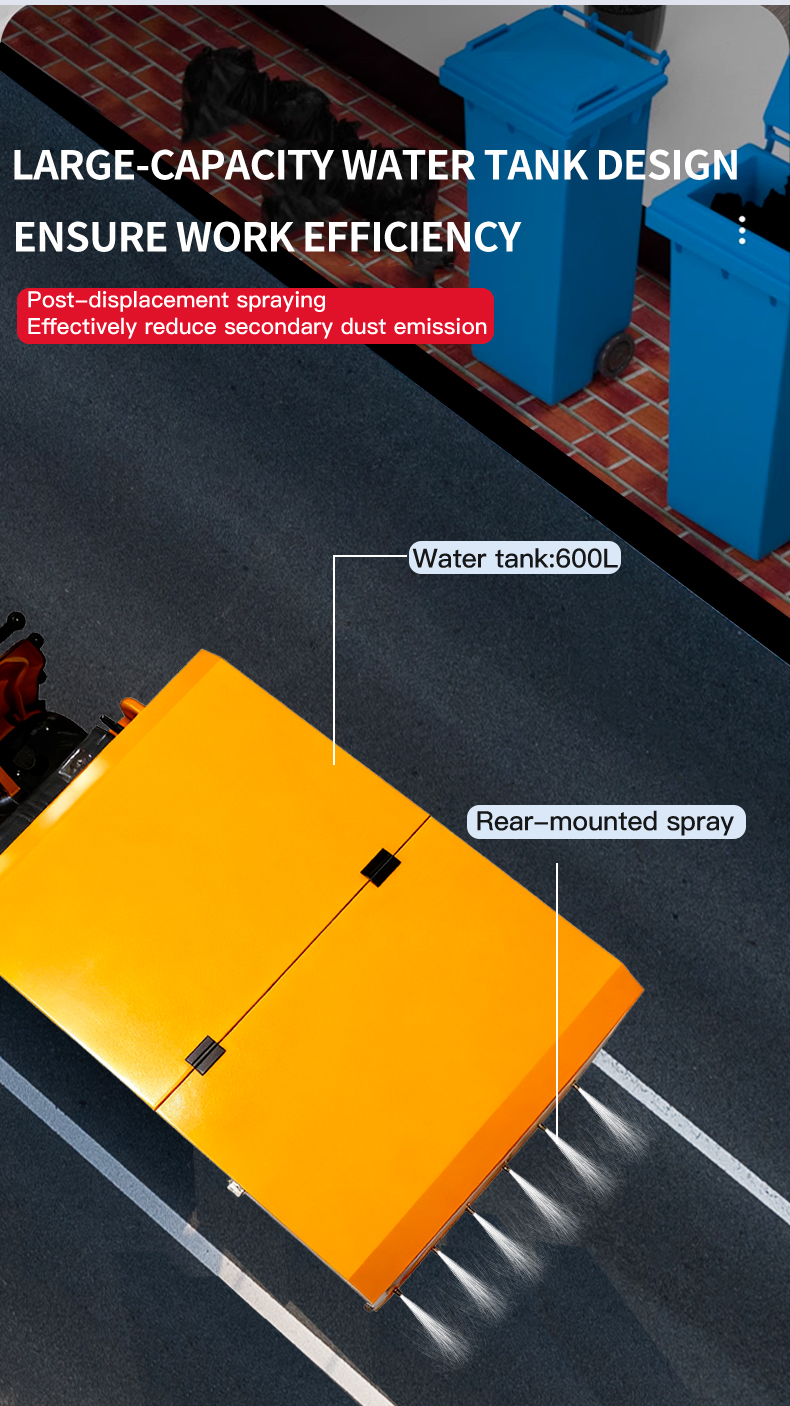

6.  **Water Tank:** Rotomolded from PE material for permanent rust resistance. With a 600-liter capacity, it supports 40–50 minutes of continuous washing. It is equipped with drainage and overflow ports to meet operational needs while maximizing tank protection.

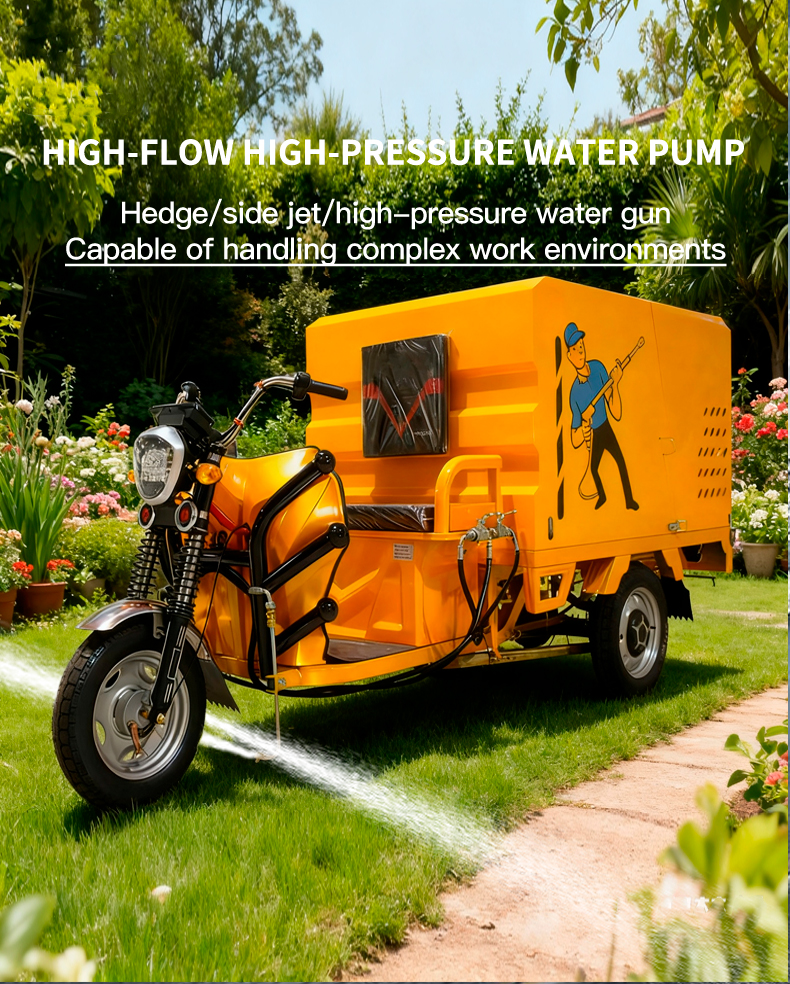

7.  **High-Pressure Cleaner:** Powered by a high-quality domestic 13HP engine and a renowned brand high-pressure plunger pump. It delivers a maximum pressure of 25 MPa and a flow rate of 15 L/min, ensuring excellent cleaning results, compact design, easy handling, long service life, and rapid response.

8.  **Extended Range:** Equipped with an additional 30L gasoline tank to extend operating time and improve overall work efficiency. 9. Front-mounted multi-function spot-cleaning nozzle; adjustable for vertical movement and rotation to meet the requirements of various operating conditions.

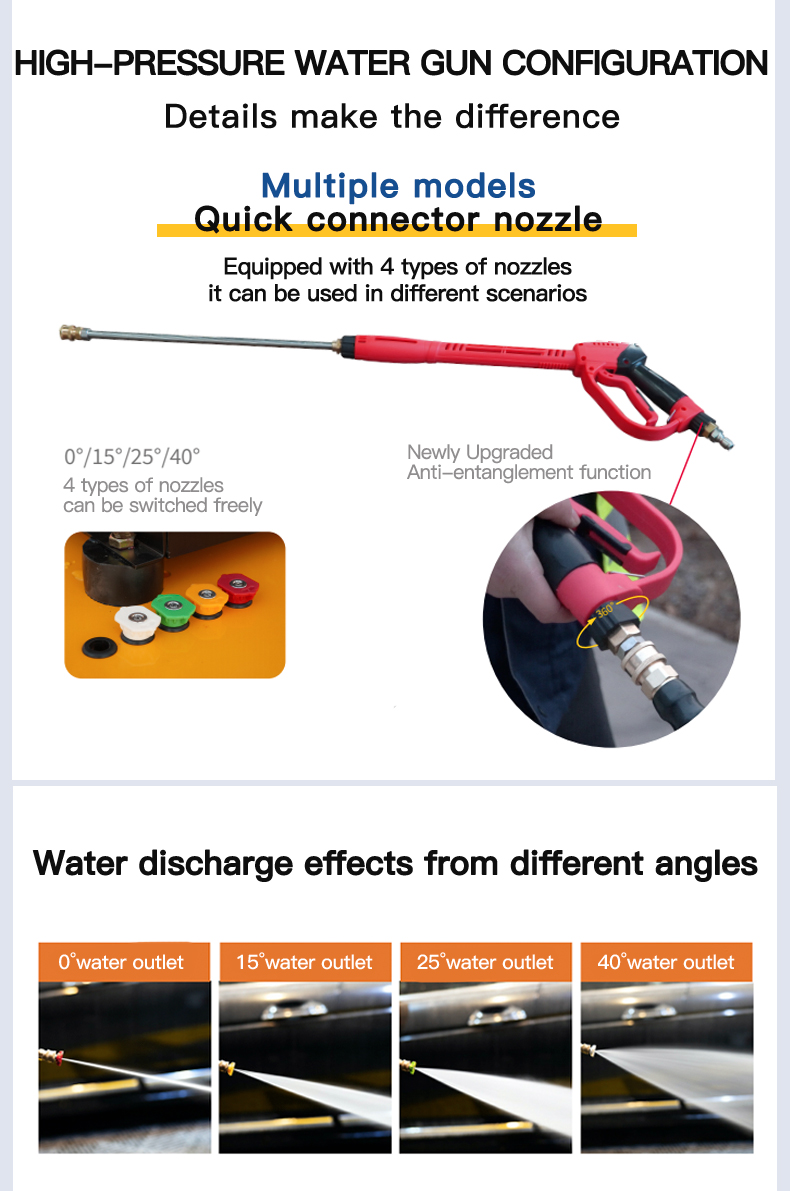

10. Rear-mounted 15-meter automatic hose reel equipped with a high-pressure spray gun, enabling manual high-pressure washing of road surfaces.

The DJ600CX three-wheeled high-pressure cleaning vehicle is a simple, practical product designed for urban sanitation and street cleaning. Compact, agile, and versatile, it offers guaranteed quality and is capable of performing sanitation tasks on roadways, pedestrian walkways, back alleys, and around trash bins.
