CM1568SY

1. Features a stainless steel waste hopper with a 1.5 m³ capacity and a hydraulic tipping mechanism.

2. Utilizes an articulated frame design for flexible steering and a tight turning radius, allowing access to narrow spaces and corners; capable of navigating uneven road surfaces and climbing curbs.

3. Equipped with a handheld suction hose for vacuuming areas such as green belts and drainage pits.

4. Includes a 220-liter water tank and a micro electric diaphragm pump; water mist nozzles on the brushes allow for adjustable water spraying to suppress dust based on road conditions during operation.

5. Employs a hydrostatic continuously variable transmission (CVT) system driven by a bidirectional variable displacement pump and wheel-end motors; features full hydraulic power steering for effortless and agile operation.

6. Combines mechanical brakes with the automatic braking effect of the hydrostatic transmission to ensure safe driving and parking.

7. Equipped with a split-type air conditioning and heating system, ensuring a comfortable operating environment in both summer and winter.

8. Features a panoramic glass design for the front windshield and side windows, providing an expansive field of view; the cab floor includes a viewing window to monitor sweeping progress, and the doors feature a panoramic glass design with metal frames and sliding windows. All glass is fitted with solar control film, ensuring effective air conditioning performance even during hot summers with intense sunlight.

9. Equipped with a reversing camera system, enhancing safety by allowing the operator to monitor the area behind the vehicle during sweeping and reversing maneuvers.

10. Uses brushes with a blend of steel wire and nylon bristles, enhancing overall strength and wear resistance; this significantly improves cleaning efficiency and reduces operating costs. 11. The water tank is manufactured using a rotational molding process with advanced LLDPE material; it is lightweight, corrosion-resistant, and highly durable, offering an attractive appearance while reducing the machine's overall weight. 12. The unique structural design of the drive and suction systems ensures extremely low power consumption. 13. Engine cooling fan and A/C compressor drive assembly: The engine utilizes an aluminum plate-fin radiator integrated with the hydraulic oil cooler, ensuring high heat dissipation efficiency; thermal balance testing confirms normal operation even in high-temperature regions (up to 50°C).

14. Sweeping brush rotation speed is controlled by a manual valve, allowing for stepless adjustment and reliable operation.

15. Key components are sourced from high-quality products, ensuring the overall reliability of the machine.

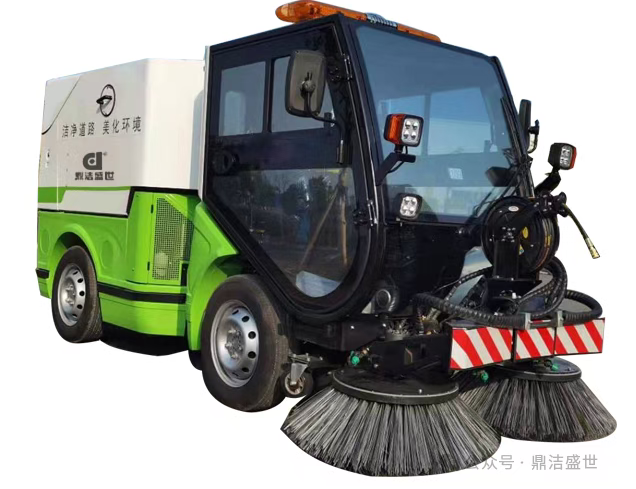

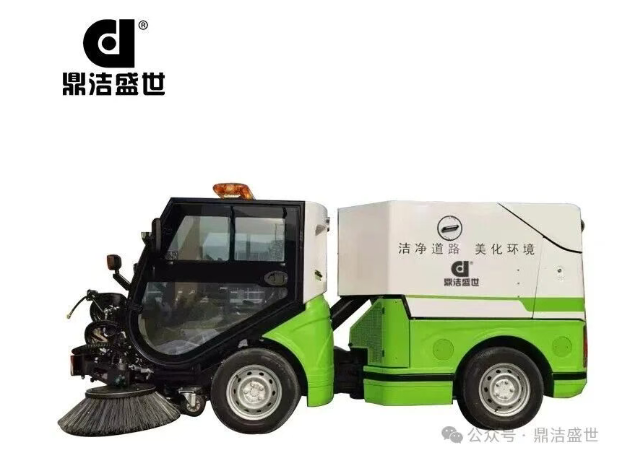

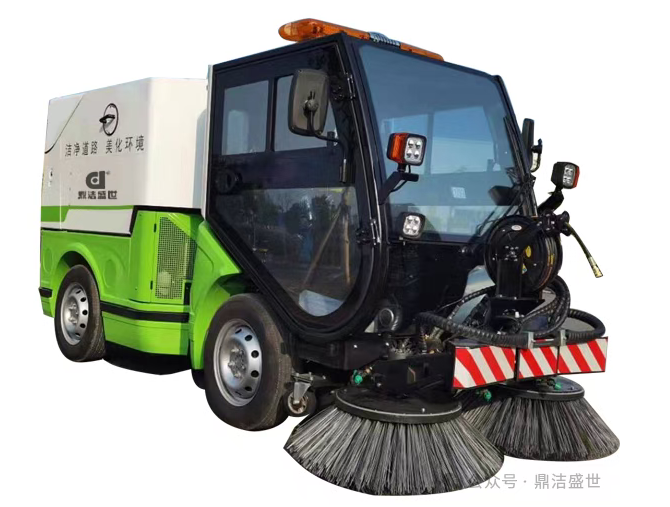

• The CM1568SY is a multi-functional sweeper featuring an articulated chassis. It boasts a streamlined design, a panoramic glass cabin, and a stainless-steel debris hopper, and is equipped with heating and air conditioning; it utilizes a vacuum-assisted sweeping system.
• Hydraulic systems power the travel drive, steering, fan, sweeper brushes, and debris hopper lift;
• brush rotation speed is regulated by a flow control valve, allowing for stepless adjustment via the control handle based on actual road conditions.
• The suction system utilizes a dual-loop airflow reverse-pulse mechanism to enhance cleaning efficiency.
• Water spray systems are installed at the sweeper brushes and within the suction intake ducts to prevent dust from rising and causing secondary pollution during operation.
• The sweeping width is adjustable from 1.7 to 2.4 meters, making the machine suitable for cleaning urban non-motorized vehicle lanes, public squares, parks, sports venues, and exhibition centers.
